FIG. 01 · Eaton 5P · 650VA – 1550VA
Eaton 5P
Compact Series 5 line-interactive UPS, workhorse for small servers and network gear.
- Rating
- 650VA – 1550VA
- Phase
- Single-phase
- Topology
- line-interactive
- Form factor
- mixed
- Battery
- mixed
- Variants
- 6
- Pure sine wave output
- AVR (Automatic Voltage Regulation)
- Lithium-ion option (8-year service life)
- Tower or 1U rack form factor
- Eaton Intelligent Power Manager included
- Mini-Slot for network/relay card
Gallery
Detail
The Eaton 5P in context.
The Eaton 5P is the entry to Eaton's Series 5 line-interactive family, 650VA through 1550VA in tower and 1U rack form factors. Pure sine wave output, AVR, and the option of lithium-ion batteries for 8-year service life. Best fit for desktop servers, small comms cabinets, and edge networking.
UPS Services is an Eaton Channel Partner and supplies, installs and supports the full 5P range, including the lithium-ion 5P1550GR-L variant.
Manufacturer overview: Eaton Eaton 5P
Variants & specifications
6 models in the Eaton 5P range.
Pricing depends on accessories, runtime, network management, and service level. Quote returned within one business day for any model below.
| Model | Rating | Notes |
|---|---|---|

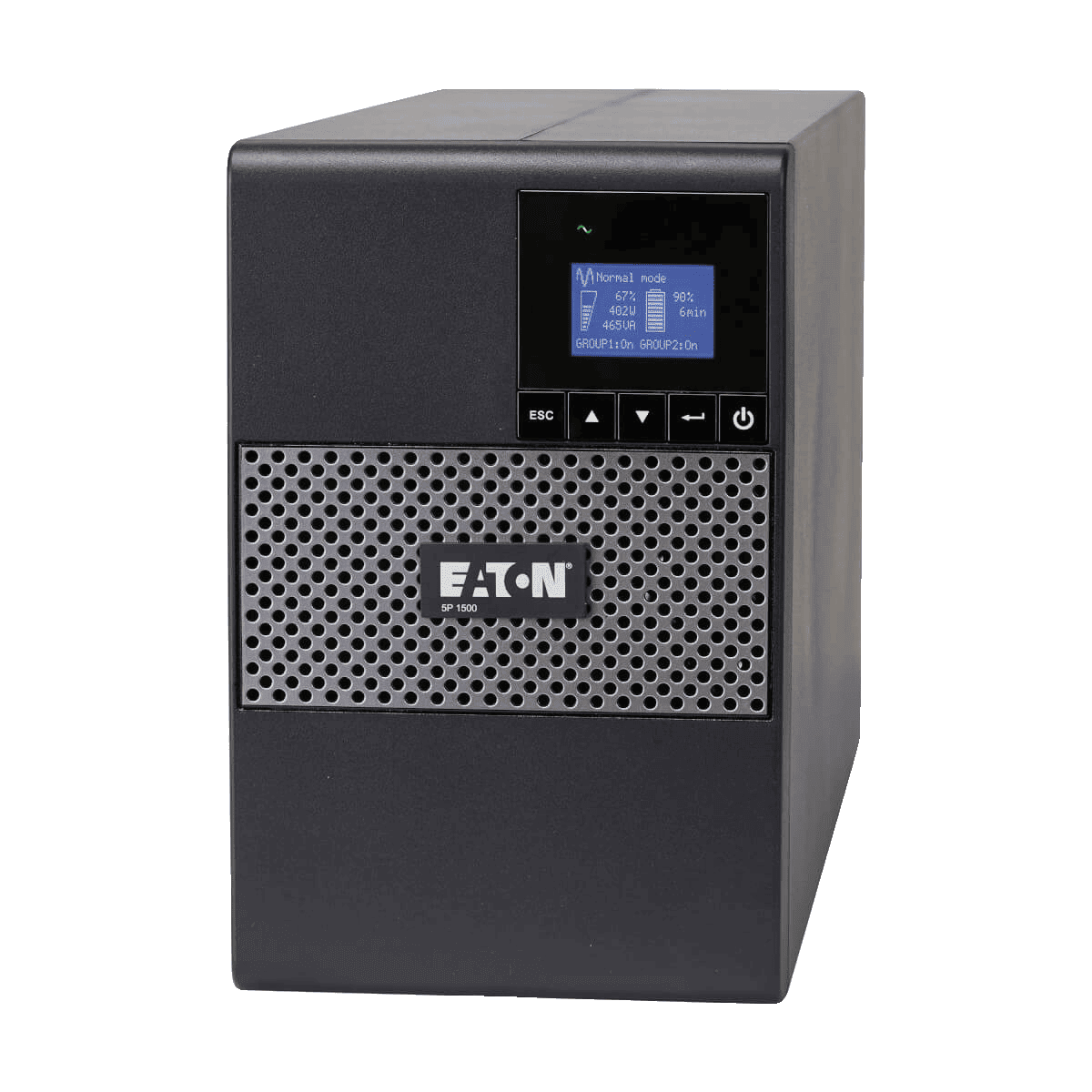

| 5P650AU(T) | 650VA / 420W | Tower |
| 5P850AU(T) | 850VA / 600W | Tower |
| 5P1150AU(T) | 1150VA / 770W | Tower |
| 5P1550AU(T) | 1550VA / 1100W | Tower |

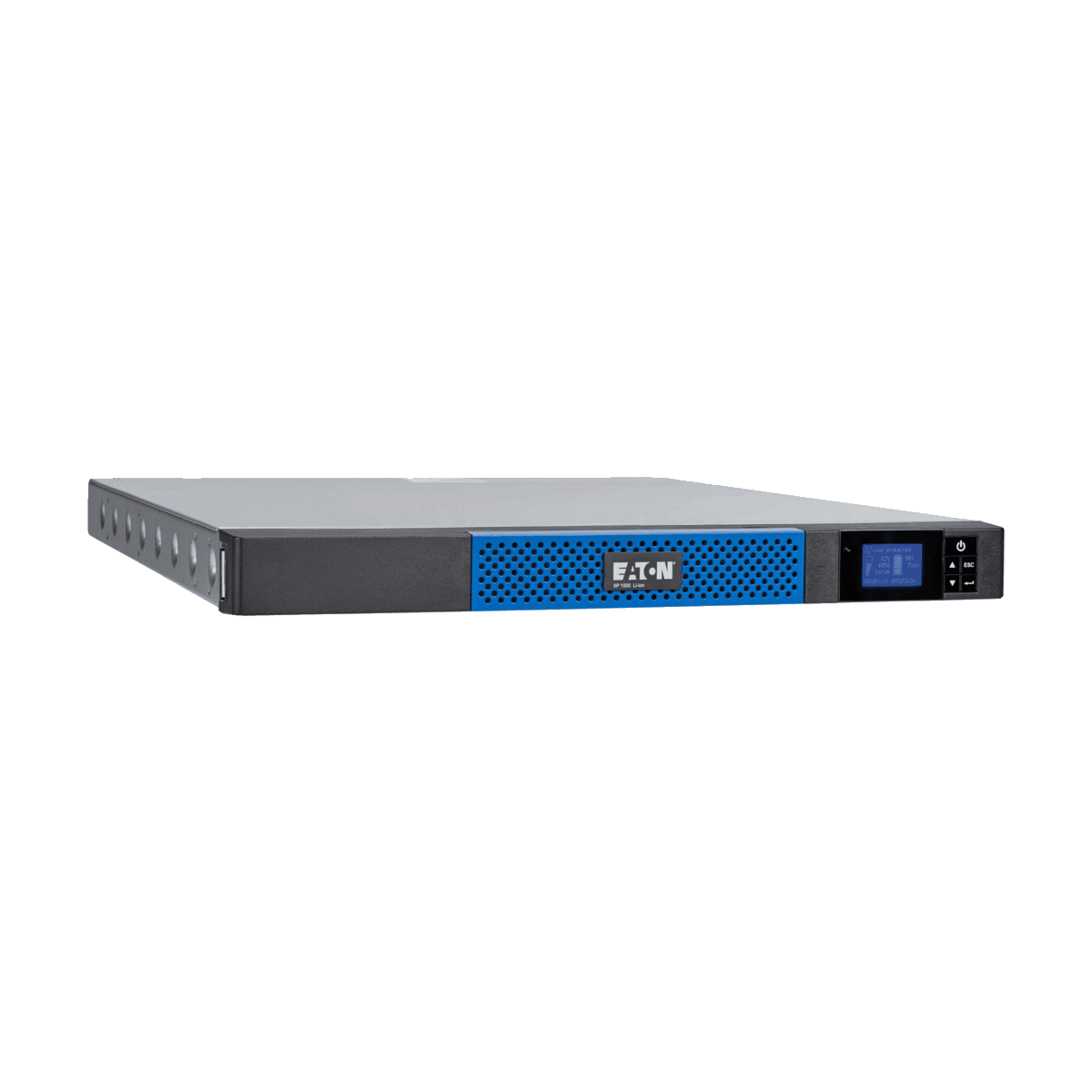

| 5P1550iR | 1550VA / 1100W | 1U rack |
| 5P1550GR-L | 1550VA / 1100W | Lithium-ion 8-year service |
Companion systems
Products that complete a system around the Eaton 5P.
Battery extensions, bypass panels, monitoring cards and accessories that match this series.
Specify a Eaton 5P
