FIG. 01 · Eaton 9PX · 1kVA – 11kVA
Eaton 9PX
Best-in-class single-phase online UPS, the Australian critical-load workhorse.
- Rating
- 1kVA – 11kVA
- Phase
- Single-phase
- Topology
- online
- Form factor
- mixed
- Battery
- mixed
- Variants
- 10
- Online double-conversion (up to 95% efficiency)
- Unity power factor (VA = W)
- Lithium-ion option (3× service life)
- ABM battery management technology
- Hot-swappable batteries
- Gigabit Network Card (UL+IEC cyber)

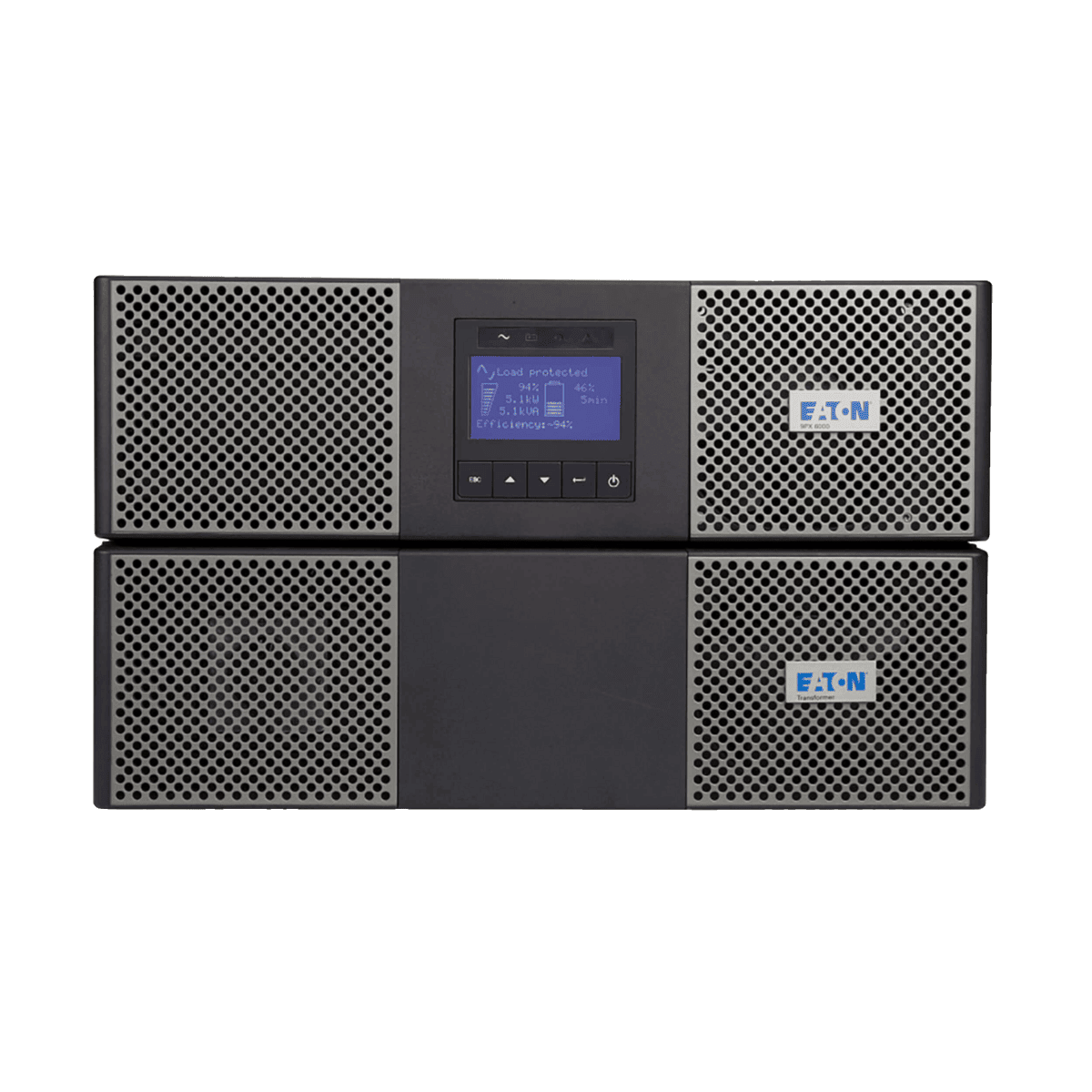

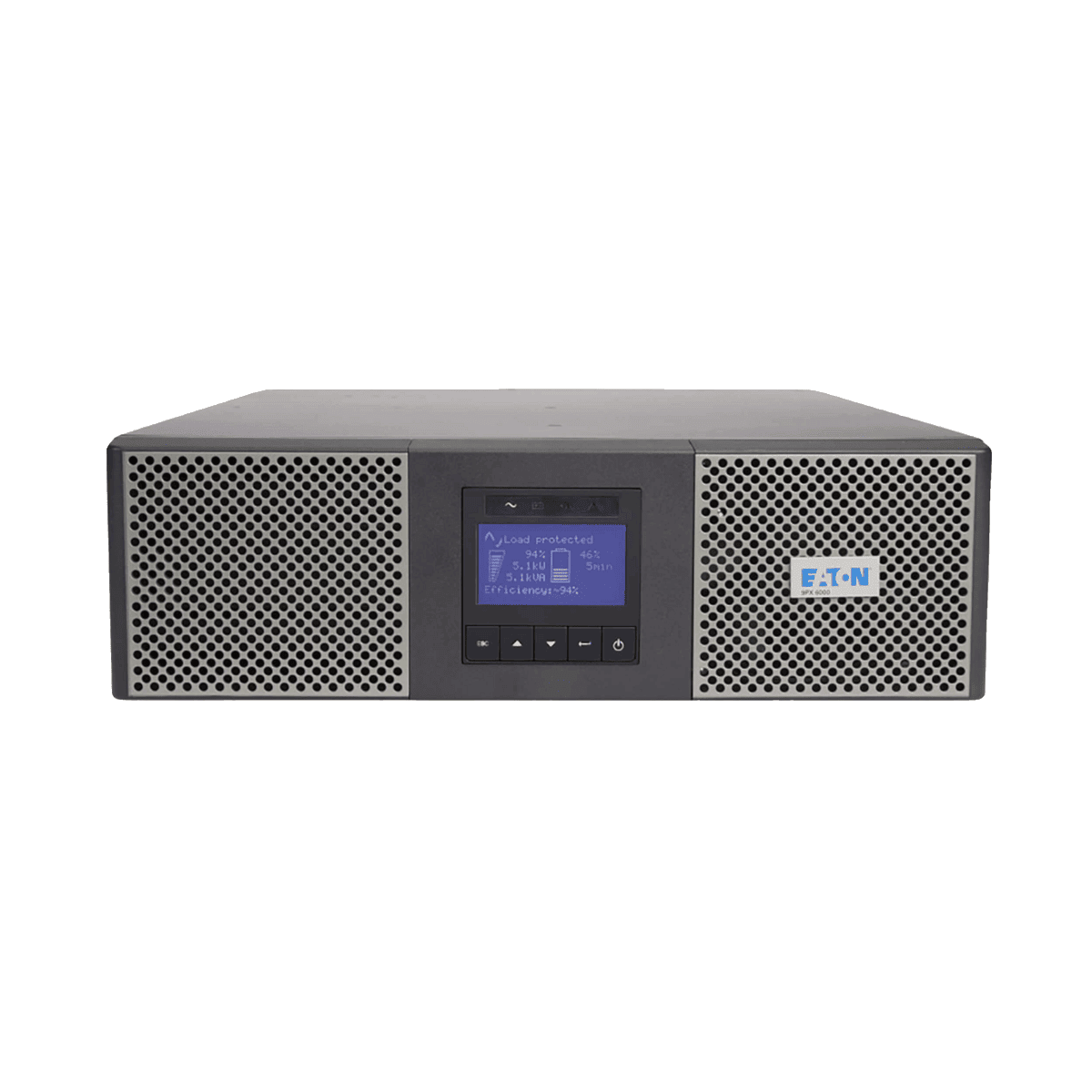

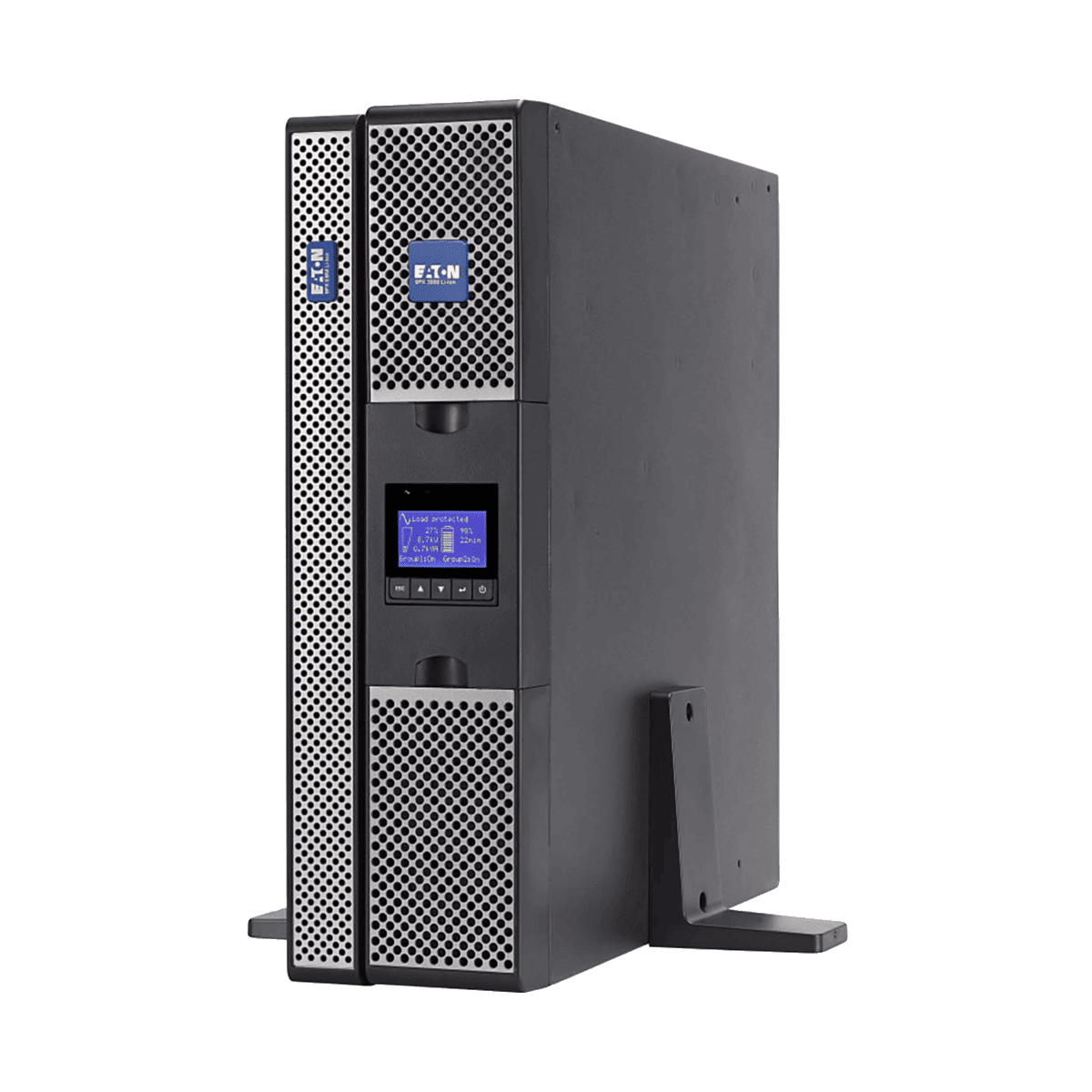

Gallery
Detail
The Eaton 9PX in context.
The Eaton 9PX is the most-deployed single-phase online double-conversion UPS in Australia, 1kVA through 11kVA in rack/tower convertible chassis with optional lithium-ion batteries delivering up to 3× the service life of VRLA. Unity power factor (VA = W) means 11% more usable power than a typical 0.9 PF UPS at the same VA rating. Eaton Gigabit Network Card is the first UPS network card to comply with both UL and IEC cybersecurity standards.
UPS Services is an Eaton Channel Partner with manufacturer-trained engineers across the full 9PX range, including the marine and lithium-ion variants.
Manufacturer overview: Eaton Eaton 9PX
Variants & specifications
10 models in the Eaton 9PX range.
Pricing depends on accessories, runtime, network management, and service level. Quote returned within one business day for any model below.
| Model | Rating | Notes |
|---|---|---|
| 9PX1000IRT2UANZ | 1000VA / 1000W | Rack/tower 2U |
| 9PX1500IRT2UANZ | 1500VA / 1500W | Rack/tower 2U |
| 9PX2200IRT2UANZ | 2200VA / 2200W | Rack/tower 2U |
| 9PX3000IRT2UANZ | 3000VA / 3000W | Rack/tower 2U |
| 9PX5Ki | 5000VA / 4500W | Internal batteries |
| 9PX6Ki | 6000VA / 5400W | Internal batteries |
| 9PX8KIPM | 8kVA | Power module 1:1 |
| 9PX11KIPM | 11kVA | Power module 1:1 |
| 9PX6KIPM31 | 6kVA | Power module 3:1 |
| 9PX11KIPM31 | 11kVA | Power module 3:1 |
Companion systems
Products that complete a system around the Eaton 9PX.
Battery extensions, bypass panels, monitoring cards and accessories that match this series.
