FIG. 01 · APC Service Bypass Panel · 1.5kVA – 20kVA
APC Service Bypass Panel
Maintenance bypass switches enabling UPS service without dropping the load.
- Rating
- 1.5kVA – 20kVA
- Phase
- Mixed
- Topology
- standby
- Form factor
- mixed
- Battery
- vrla
- Variants
- 6
- Make-before-break switching
- Rack-mount or hardwired panel
- Maintenance without load interruption
- IEC C13/C19 or hardwired output
- Compatible with Smart-UPS and Galaxy
Gallery
Detail
The APC Service Bypass Panel in context.
APC Service Bypass Panels and Bypass PDUs allow the load to be transferred from the UPS to raw mains for maintenance, battery replacement, or UPS swap without interrupting the protected equipment. Available in rack-mount and hardwired floor-standing forms across the Smart-UPS and Galaxy ranges.
UPS Services designs, supplies and installs bypass panels as part of every Galaxy and large Smart-UPS installation, and retrofits them onto existing systems.
Manufacturer overview: APC by Schneider Electric APC Service Bypass Panel
Variants & specifications
6 models in the APC Service Bypass Panel range.
Pricing depends on accessories, runtime, network management, and service level. Quote returned within one business day for any model below.
| Model | Rating | Notes |
|---|---|---|

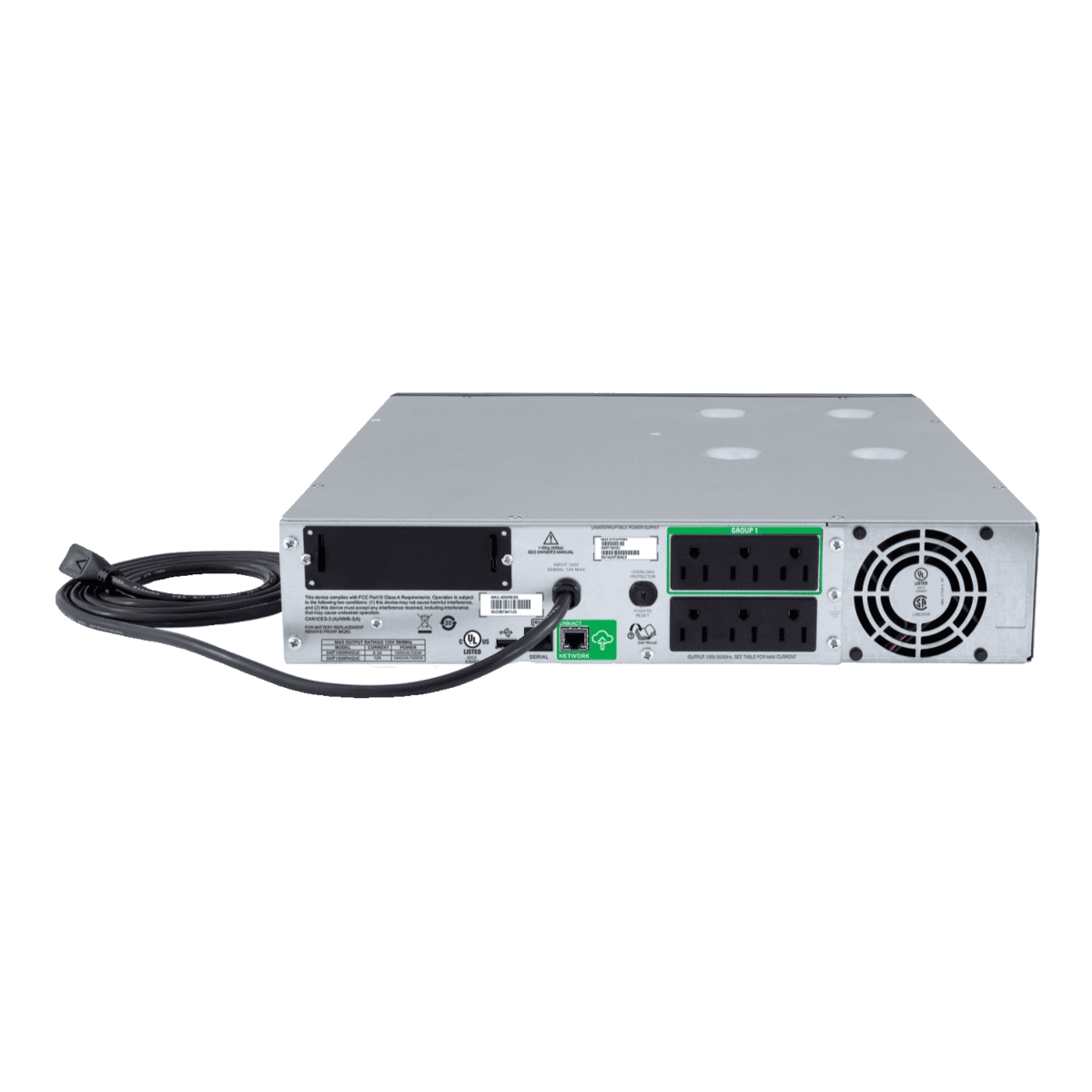

| SBP1500RMI | 1.5kVA | Rack-mount PDU |

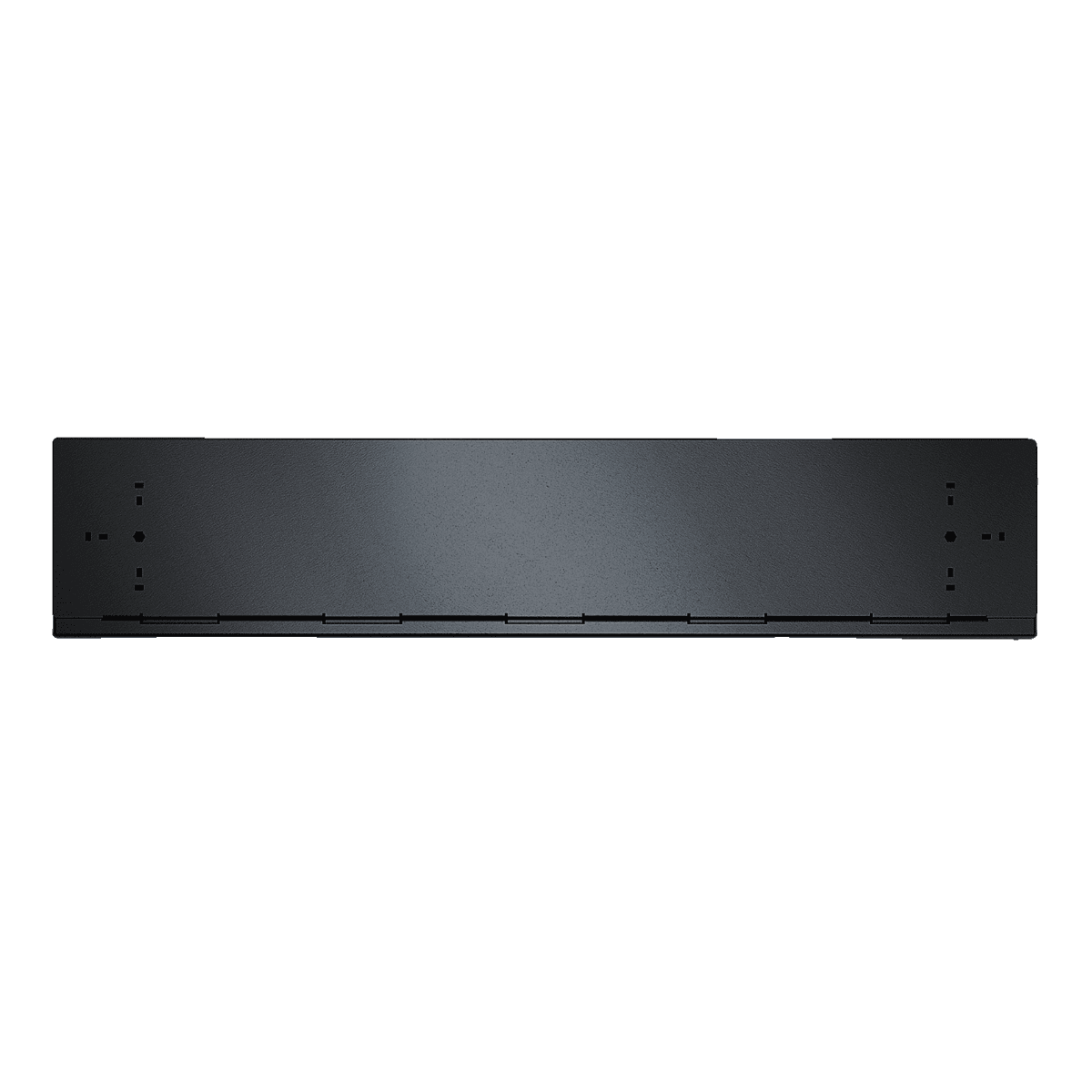

| SBP3000RMI | 3kVA | Rack-mount PDU |
| SBP5000RMI2U | 5kVA | 2U rack panel |
| SBP10KRMI4U | 10kVA | 4U rack panel |
| SBP16KRMI4U | 16kVA | 4U rack panel |

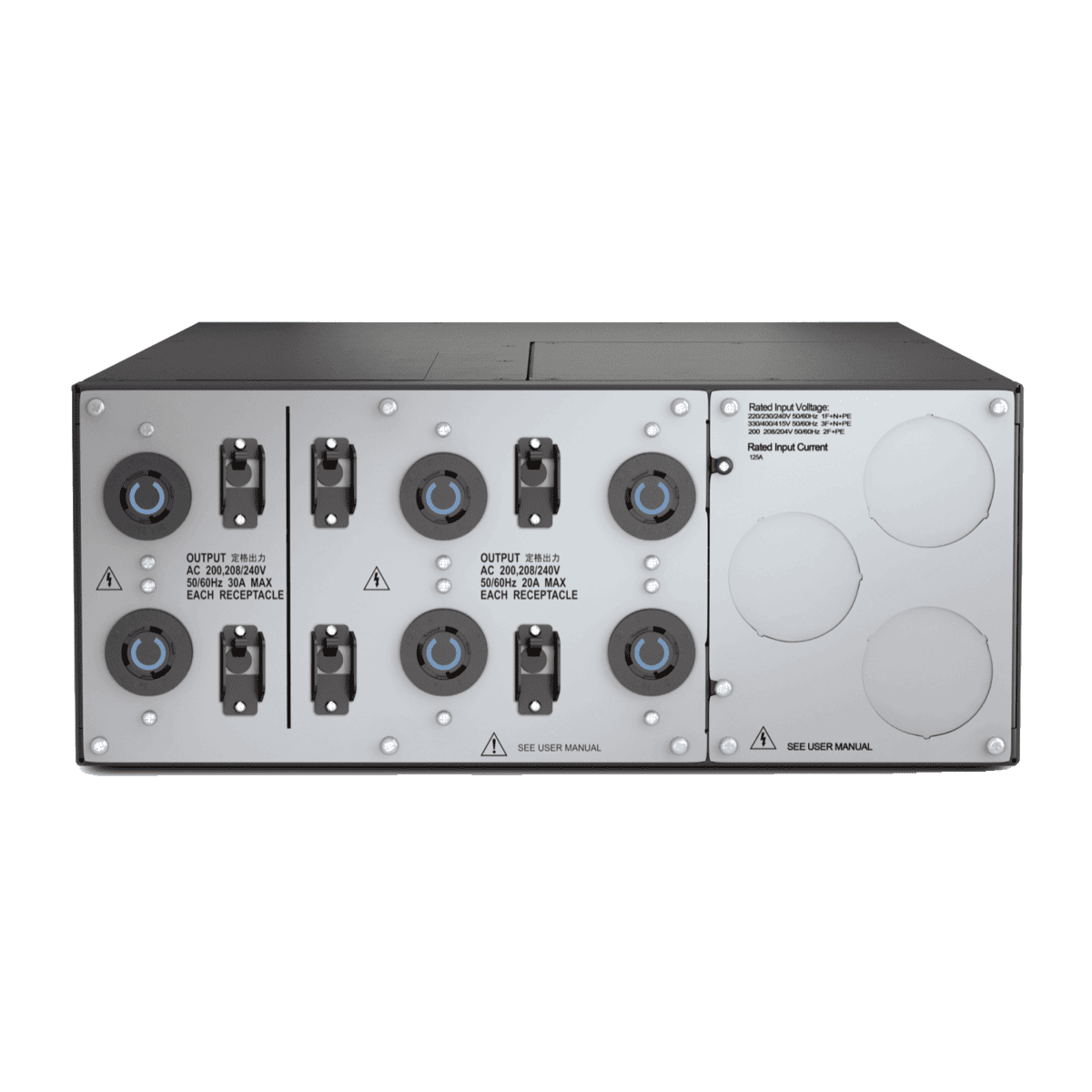

| SBP20KRMT4U | 20kVA | Hardwired panel |
Companion systems
Products that complete a system around the APC Service Bypass Panel.
Battery extensions, bypass panels, monitoring cards and accessories that match this series.
Specify a APC Service Bypass Panel
