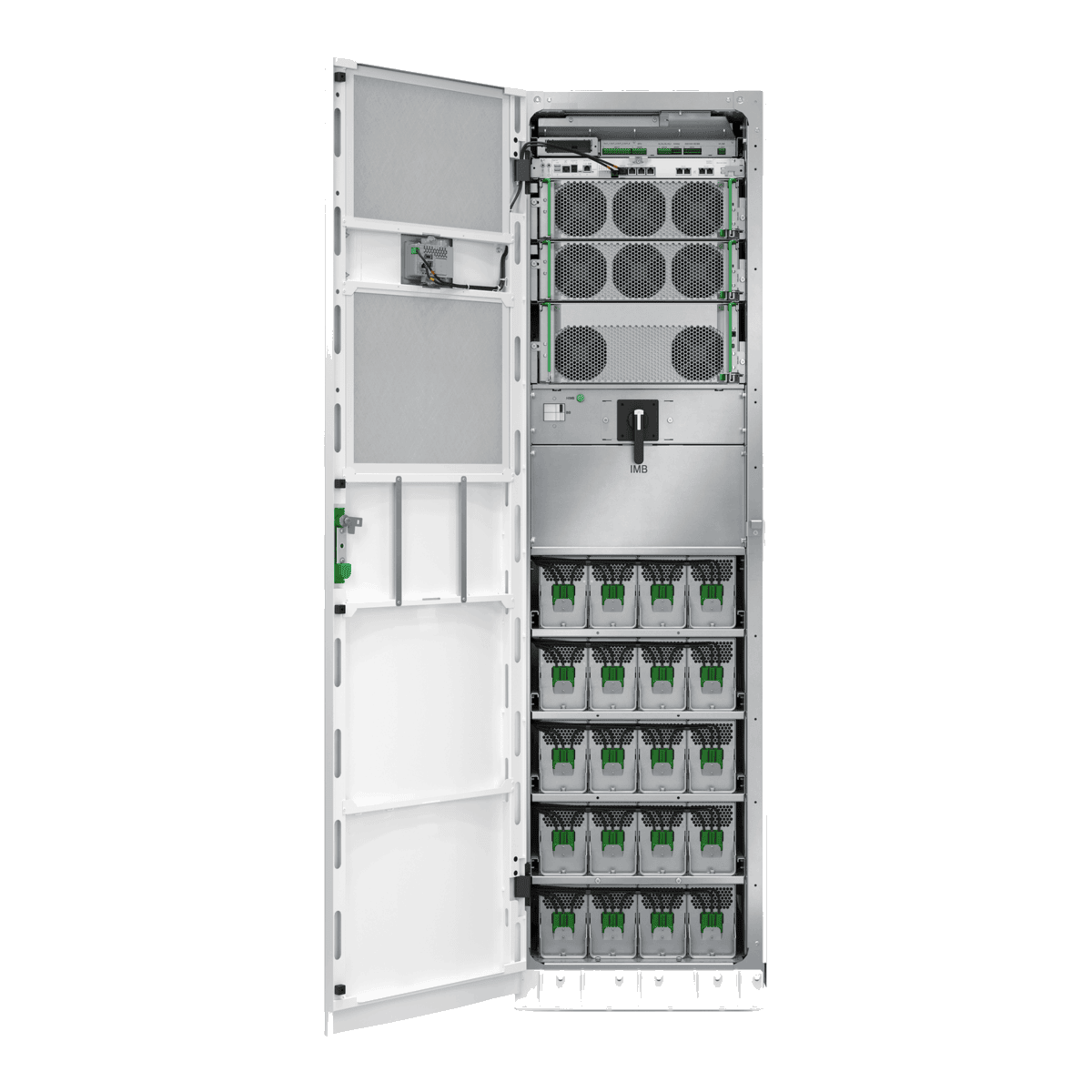

FIG. 01 · APC Galaxy VS · 10kW – 150kW
APC Galaxy VS
Three-phase modular online double-conversion UPS for edge, small and medium data centres.
- Rating
- 10kW – 150kW
- Phase
- Three-phase
- Topology
- online
- Form factor
- modular
- Battery
- mixed
- Variants
- 7
- Online double-conversion (up to 96.5%)
- eConversion mode up to 99% efficiency
- Lithium-ion battery option
- Live Swap (no shutdown required)
- Modbus, BACnet, SNMP integration
- External maintenance bypass support
Gallery
Detail
The APC Galaxy VS in context.
The APC Galaxy VS by Schneider Electric is a highly efficient, modular, three-phase online double-conversion UPS targeting 10-150kW (400V) installations, typical of small to medium data halls, hospital comms rooms, and commercial building risers. Lithium-ion battery option significantly reduces footprint vs traditional VRLA, and Live Swap allows safe expansion of power modules with the load energised.
UPS Services delivers manufacturer-aligned commissioning of Galaxy VS systems with full SAT documentation, integrated maintenance bypass design, and battery system commissioning to AS/NZS 5139.
Manufacturer overview: APC by Schneider Electric APC Galaxy VS
Variants & specifications
7 models in the APC Galaxy VS range.
Pricing depends on accessories, runtime, network management, and service level. Quote returned within one business day for any model below.
| Model | Rating | Notes |
|---|---|---|
| GVSUPS10K | 10kW | Internal Li-ion option |
| GVSUPS20K | 20kW | - |
| GVSUPS40K | 40kW | - |
| GVSUPS60K | 60kW | Marine certified option |
| GVSUPS80K | 80kW | Up to 5 internal Li-ion strings |
| GVSUPS100K | 100kW | - |
| GVSUPS150K | 150kW | - |
Companion systems
Products that complete a system around the APC Galaxy VS.
Battery extensions, bypass panels, monitoring cards and accessories that match this series.
Specify a APC Galaxy VS
